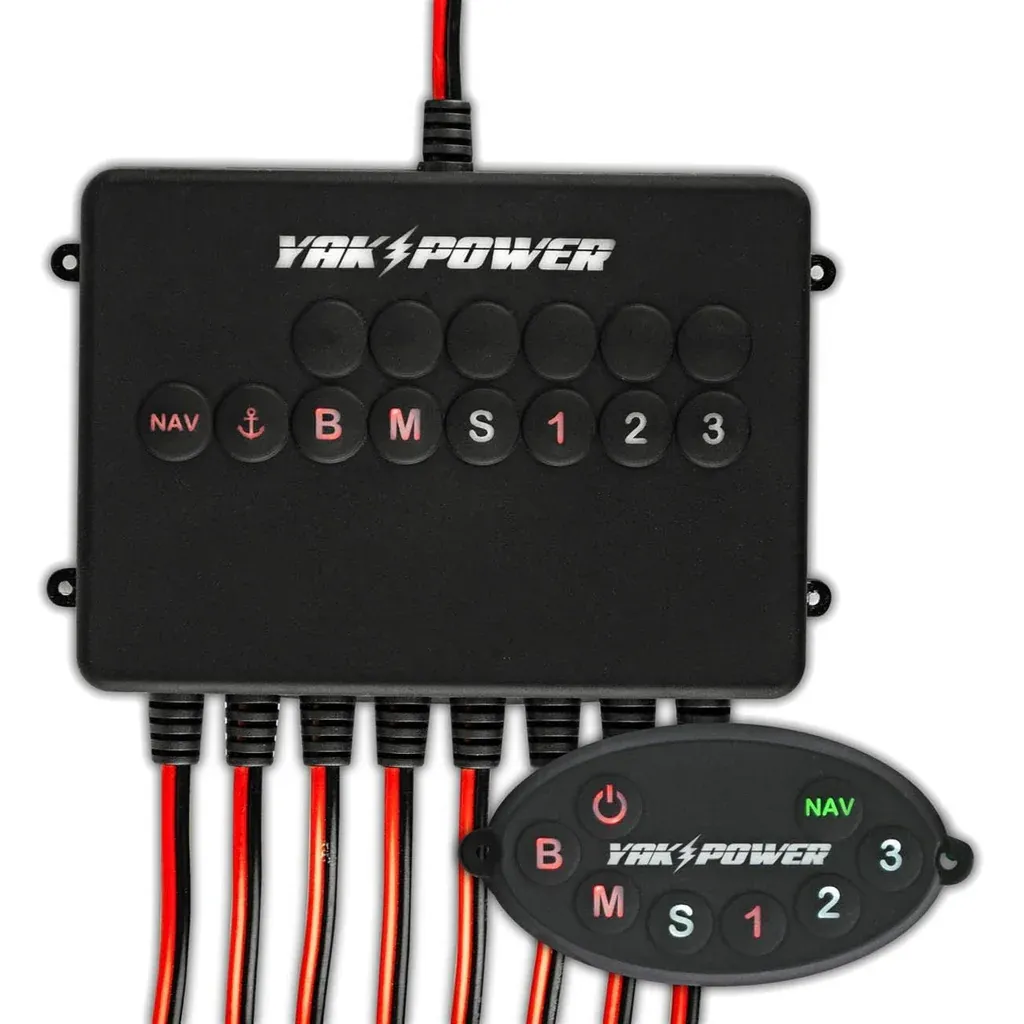

Yak-Power YP-RP8R 8 Circuit Bluetooth Enabled Switching System
The new award winning Yak Power eight circuit digital switcher with wireless keypad takes rigging a kayak for electronics to the next level.
With eight total circuits, NAV, anchor, bow, midship, stern, and accessory 1-3 button functionality, along with integrated Bluetooth and a mobile app, full control of your 12- volt power and electronics will always be at your fingertips. Spend less time rigging and more time fishing.
Wireless RF Controller Features
There is no control cable between the Keypad Controller and Digital Switch Box. This makes use of the keypad OPTIONAL.
Keypad Button Functions:
- Master Power button turns panel ON or turns panel and all circuits OFF, remembering “Last Mode”, if panel is already ON.
- Logos and button icons are back lighted and illuminated WHITE when the panel is ON.
- When the Master Power button is ON the Individual buttons will toggle their respective circuit ON/OFF. The buttons are illuminated WHITE when OFF, and RED when ON and the respective circuit is energized (excluding NAV button).
NAV Button Functions:
- First “Click Press” energizes BOTH the NAV circuit and Anchor Circuit. Button turns GREEN (Go/Moving/Navigating)
- Second “Click Press” turns OFF NAV circuit but leaves Anchor Circuit ON. Button turns RED (Stopped/Anchored)
- Third “Click Press” turns OFF Anchor Circuit. Button turns back to WHITE (all NAV lights are OFF)
- REPEAT above sequence with each “Click Press”
Warning: If connecting a trolling motor, large LED light bar, agricultural sprayer or other high current electronic 12V device you MUST use a secondary YP-LDR50 Heavy Duty relay and the correct size gauge of wire on the load side of the relay between the relay and the device you are connecting. You must also use the same size gauge of wire on the battery connection to the relay to insure proper function and protection of your device. Please consult the specifications for the device you are connecting for proper wire sizing BEFORE installation.
